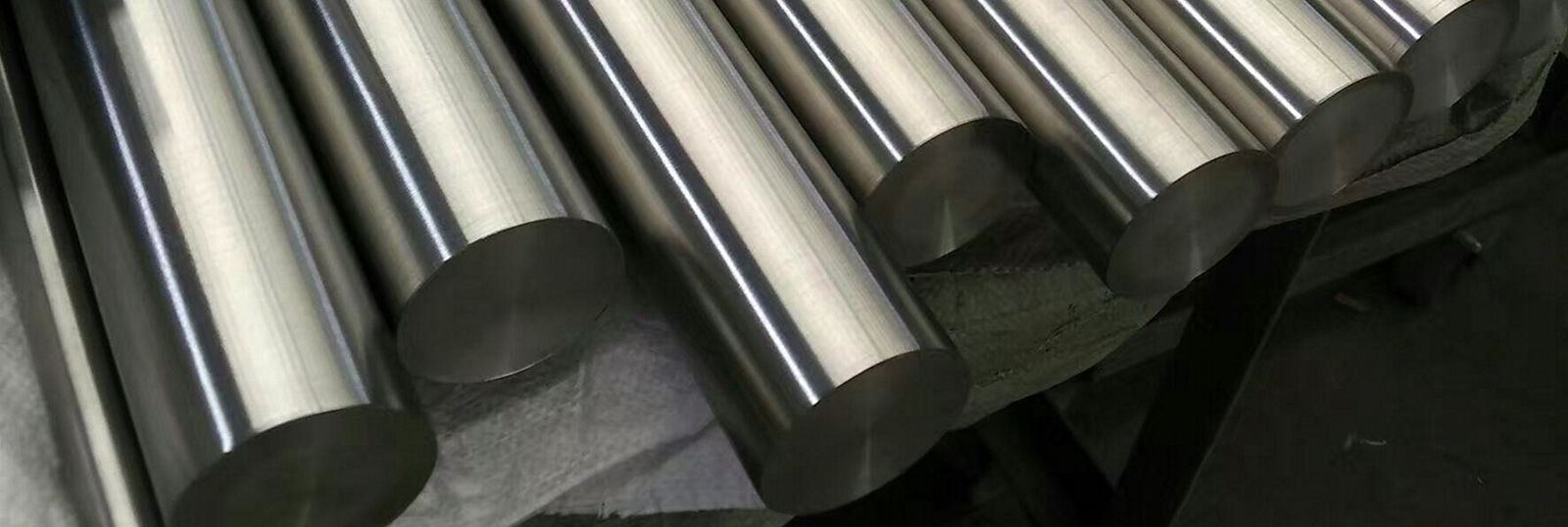

Stainless Steel 15-5 PH
Stainless Steel 15-5 is a precipitation hardening martensitic stainless steel. It is used in applications requiring better corrosion resistance and transverse properties compared to other similar martensitic grades. Strength and toughness desired can be altered by temperate range in the heat treatment process.
Standards
UNS S15500
AMS 5659
ASTM A564
15-5 PH Applications
Valves
Aircraft parts
Gears
Pump parts
Composition(%)
Carbon: 0.070 Max
Chromium: 14.0-15.50
Columbian + Tantalum: 0.15-0.45
Copper: 2.50-4.50
Manganese: 1.00 Max
Nickel: 3.50-5.50
Phosphorus: 0.040 Max
Silicon: 1.00 Max
Sulfur: 0.30 Max
15-5 Stainless Steel Mechanical Properties
| Material Type | Condition | Ultimate Tensile Strength (PSI) | 0.2% Yield Strength (PSI) | Elongation (% In 2in.) | Reduction Of Area (%) | Hardness Brinell | Hardness Rockwell |
|---|---|---|---|---|---|---|---|
| 15-5 PH | H900 | 190,000 | 170,000 | 6 | 15 | 388 | C40 |
| H1025 | 155,000 | 145,000 | 8 | 27 | 331 | C35 | |
| H1075 | 145,000 | 125,000 | 9 | 28 | 311 | C32 | |
| H1150 | 135,000 | 105,000 | 11 | 30 | 277 | C28 | |
| H1150-M | 115,000 | 75,000 | 14 | 35 | 255 | C24 |
