Nitronic 60
Nitronic® 60 is known for its excellent galling resistance, even at elevated temperatures. The additions of 4% silicon and 8% manganese inhibit wear, galling, and fretting. It is commonly used for various fasteners and pins that require strength and resistance to galling. It maintains decent strength up to temperatures of 1800°F and has oxidation resistance similar to that of 309 stainless steel. The general corrosion resistance is between that of 304 and 316 stainless steel..
Chemical Composition(%)
| Ni | Cr | Mn | Si | C | N | S | P | Fe | |
|---|---|---|---|---|---|---|---|---|---|
| MIN | 8.0 | 16.0 | 7.0 | 3.5 | - | 0.08 | - | - | - |
| MAX | 9.0 | 18.0 | 9.0 | 4.5 | 0.10 | 0.18 | 0.03 | 0.06 | Balance |
Specifications
ASME SA 193, ASME SA 479
ASTM A 193, ASTM A 193 Class 1C, ASTM A 262, ASTM A 276, ASTM A 479
Inventory

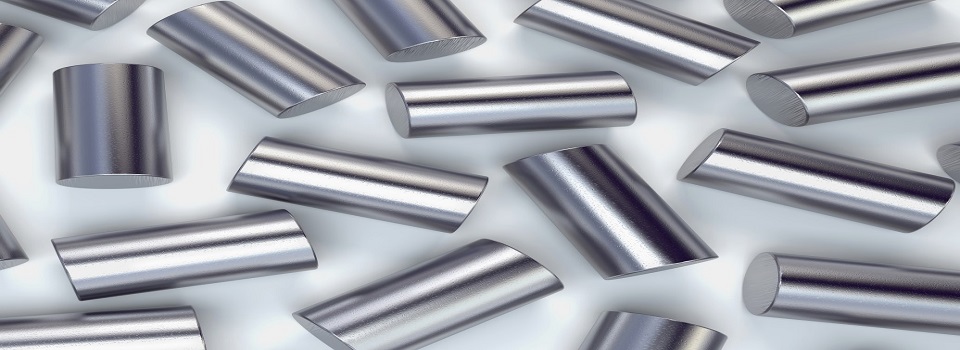

Nitronic® 60 Round BarCommon Trade Names
N60 StainlessFeatures
Applications
Physical Properties
Density: 0.275 lb/inch3
Electrical Resistivity: 589 ohm circ-mil/ft
| Temperature, °F | 70 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Coefficient of Thermal Expansion, in/in°F x 10-6 | - | 8.8 | 9.2 | 9.6 | 9.8 | 10.0 | 10.3 | 10.5 | 10.7 | 11.0 |
| Modulus of Elasticity, psi X 106 STA |
- | 26.2 | - | - | - | - | - | - | - | - |
* 70°F to indicated temperature.
Mechanical Properties
Minimum Specified Properties, ASTM A 276 Bar
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Hardness MAX, Brinell | 241 |
Typical Tensile Properties Annealed Bar ¾ - 1"
| Temperature, °F | 68 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 |
| Ultimate Tensile Strength, ksi | 106.5 | 98.2 | 84.4 | 80.5 | 78.3 | 75.4 | 66.6 | 49.8 | 30.2 |
| 0.2% Yield Strength, ksi | 56.5 | 44.4 | 32.8 | 29.7 | 29.0 | 28.0 | 28.1 | 25.3 | 16.4 |
| Elongation, 2% | 61.7 | 63.3 | 64.0 | 59.6 | 65.5 | 52.2 | 48.2 | 47.1 | 72.8 |
